What Is a Shunt Trip Breaker

22 December, 2021

What Is a Shunt Trip Breaker and How Does It Work?

If you’re looking for an easy way to shut off the electrical supply in your circuit, installing a shunt trip breaker may be worthwhile. Shunt trips can add additional protection to your electrical system to prevent short circuits and injury during a disaster in your home, such as a fire.

Read on to learn the answers to “What is a shunt trip breaker?” and “What is the purpose of a shunt trip breaker?”’

What Is a Shunt Trip Circuit Breaker?

When a circuit breaker “trips,” it detects a fault condition and automatically shuts off its electrical flow to prevent the wiring from overheating.

A shunt trip breaker is an optional accessory for your circuit breaker that can allow you to trip the breaker remotely at any time or automatically during a surge, preventing injuries and equipment damage during emergencies.

There are two main types of shunt trip breakers: automatic and manual. Manual switches allow you to turn off the breaker outside the building using a remote button. Meanwhile, automatic switches shut off power as soon as they detect a surge from an external power source.

How Does a Shunt Trip Breaker Exactly Work?

Typically, electrical currents travel through your house’s circuit breaker unchanged. However, when these currents surge too high, the extra surge of power charges an electromagnet beneath the main breaker switch, tripping the switch and cutting power.

A shunt trip breaker provides an additional method to charge the electromagnet and trip the switch, allowing for a remote or automatic power shutoff.

Some shunt trips connect to an external power source. Anytime a power surge reaches this source, a signal travels from the shunt trip to the breaker, mechanically cutting the power.

Alternatively, a shunt trip can connect to a remote switch outside the building. Pressing a button on this switch sends an electrical surge through the shunt trip wiring and shuts off the power that way.

While shunt trip breakers are not required in homes, many homeowners install them as a safety precaution. However, these devices are also common in businesses that use industrial machinery or expensive electrical systems that could experience damage during a power surge.

Why Are Shunt Trip Breakers Important?

You can use a shunt trip breaker within your home to create an additional way to shut off your house’s electrical current during an emergency, preventing injury or electrical damage.

One of the most common ways people use shunt trips is to shut off electrical equipment during a fire. Connecting the shunt trip to a smoke alarm can automatically shut off electricity as soon as the smoke detector triggers an alarm, preventing electrical hazards from the fire.

Installing a shunt trip may be especially important if your smoke detector connects to a sprinkler system. This device can shut down your electrical power as soon as the smoke detector triggers the sprinklers, reducing the risk of electrocution and minimizing damage to your electrical equipment.

Installing a shunt trip breaker is a quick and easy safety precaution that could prevent injury and expensive electrical damage down the line. Now that you know the answer to “what is a shunt trip breaker used for?” browse our Electrical Supply Distribution inventory of shunt trips today to discover the perfect shunt trip breaker for your home.

Share This Post

Related blog posts.

How To Repair Circuit Breaker?

Electrical Short Circuit: What Is It, Types, Causes, and Prevention

How to Choose Industrial Circuit Breaker Panels for Commercial Buildings

Tell Us About Your Project

First Name *

Last Name *

Please leave this field empty. Please leave this field empty.

Phone Number *

Description

Send Us The Picture Of Your Project

• Electrical , How to & Guides

Shunt Trip Breaker

• January 20, 2023
• By Leela Prasad

Understanding a Shunt Trip Circuit Breaker

A shunt trip can be used to turn off the circuit breaker remotely. When activated, a shunt release quickly engages the circuit breaker mechanism, allowing for a quick separation from the power supply. The functions of a primary circuit breaker and a shunt trip accessory are combined in the shunt trip breaker. This is installed on the primary breaker to protect your electrical system.

Also, it improves the security of your electrical system by either manually or automatically shutting down the power supply to your circuit. If a disaster strikes your home, you can rest assured that a circuit breaker will protect against short circuits and electrical damage.

Shunt Trip Breaker and Its Functioning?

A PLC or any other relay can activate this device, an optional addition to a circuit breaker, to provide protection. When there is an electrical surge, circuit breakers trip automatically (current exceeds its given specified limit). A PLC or any other relay can activate this device, an optional addition to a circuit breaker, to provide protection. A metallic strip on a switch & an electromagnet installed beneath the switch connects the first two contacts of a shunt trip breaker.

Meanwhile, the wiring for the shunt trip breaker consists of two wires. One is grounded, and the other is linked to a control system. A control system can be linked to either a sensor or a manual switch. An external source powers some shunt trips.

Where are Shunt Trip Breakers Frequently Used?

In the case of a fire, shunt trips are routinely utilized to turn off electrical equipment. When a smoke detector is wired to a shunt trip, electricity can be immediately shut off once it emits an alarm, reducing the risk of electrical shock from the fire.

Due to its necessity, this shunt trip breaker is frequently seen in commercial kitchens, elevators, and offices. Commercial kitchens use ANSI/ASME CSD-1 for this equipment, while elevators and escalators use ASME A17.1.

How to Connect the Shunt Trip Accessory to the Breaker?

Install the device in the proper location on the circuit breaker. Examine your circuit breakers to see if you have the exact specifications for each one. Connect the two terminals to their rated voltage after the unit has been properly installed within the circuit breaker, with the switch leg connected to the power source and the other leg connected to the neutral (in case you are using an L-N power source).

Any line can be connected to the switch leg to provide line-to-line service. However, the most important part of any installation is connecting the shunt to your sensor.

Importance of Shunt Trip Breakers

When smoke triggers a smoke alarm, the breaker trips automatically. As a result, the smoke alarm triggers the sprinkler while the electricity to the electrical devices is turned off. The quick loss of electricity minimizes electrical damage while also lowering the chance of short circuits and electrocution.

The electricity can be turned off remotely using a manual switch if a fire has damaged a structure. Shunt trip breakers are essential safety components that protect against human risk and electrical equipment damage.

Overall, shunt trip breakers increase the safety of breakers. They cut the power during an emergency to prevent damage to equipment and injury to people.

A shunt trip is an optional circuit breaker accessory that provides additional protection for your system. It is designed to be linked to a secondary sensor. If the sensor is triggered, the breaker is automatically tripped. It is also possible to activate it by installing a remote switch.

Related Posts:

• Water Heater Tripping Breaker
• What Causes a Circuit Breaker To Trip
• Single Pole vs Double Pole Breaker | Which Has…
• GFCI Circuit Breaker Wiring | Basics of GFCI Breaker
• 20 Amp is How Many Watts?
• Gfci Circuit Breaker Vs Gfci Receptacle - Find the…

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Get our Latest Newletters

Get great content that you love. No ads or spams, we promise.

Tutorials Symbols Courses Calculator Deals

Electrical Electronics Embedded Power Robotics ARM IOT

Mini projects Microcontroller Arduino Solar Free circuits Home Automation Seminar Topics Electronics Questions

Capacitors Resistors Filters Diodes Transistors Amplifiers IO Devices Thyristors DC Circuits Number System

Your Privacy is important to us

Tutorials Symbols Courses Calculator

• Affiliate Disclosure
• Terms and Conditions
• Privacy Policy

Copyright © 2023 Electronicshub.org

Galvin Power is reader-supported. When you buy via our links, we may earn a commission at no cost to you. Learn more

What is a Shunt Trip Breaker and How Does It Work?

Written by  Edwin Jones  / Fact checked by  Andrew Wright

What is a shunt trip breaker? Does it add protection to your electrical system?

The shunt trip breaker is a combination of the shunt trip accessory and the main circuit breaker. This installs on the main breaker to add protection to your electrical system. This adds security to your electrical system as it manually or automatically cuts the electric supply in your circuit.

This accessory can help prevent short circuits and avoid electrical damage should a disaster occur in your home.

Let me tell you more about the shunt trip breaker to help you decide if you need additional protection for your electrical system.

Table of Contents

What is Shunt Trip Breaker and How Does It Work

Where are shunt trip breakers most used, how to install a shunt trip accessory to the breaker.

You should know that shunt trip breakers are different from GFCI circuit breakers.

The GFCI circuit breaker contains one big white tail wire for neutral connections only. It cannot be connected to any control package because the GFCI circuit breaker is solely designed to detect a sudden electrical surge. It has no other purpose but to cut power in case of a short.

Meanwhile, the shunt trip breaker wiring comprises two wires. One connected to the ground, and another to a control system. The control system can be connected to a sensor or to a manual switch. When activated, the shunt trip accessory will cause the main breaker to trip.

For example, if you install a shunt trip with a smoke detector, it will activate and cut off the power should the smoke sensor trigger. It can also be installed with a remote switch , allowing you to trip your breaker manually.

It is crucial to know the difference between a regular circuit breaker and a circuit breaker installed with shunt trip accessories.

The shunt trip definition means that it is a way to cut off electrical power through other sensors, not just via thermal activation. Since this is an optional accessory for a circuit breaker, it is not required for a home electrical system.

However, it is recommended for added safety. This is especially true if you’re working with industrial machinery. Furthermore, you can use it as a manual emergency switch to shut down your main breaker.

Before installing a shunt trip, consider its cost and your existing system. You may need to change the breaker panel  and circuit breakers, especially if it is not compatible with shunt trips. You may also need a new line to connect the remote emergency switch to your breaker box.

Generally, most commercial kitchens, elevators, and offices have this shunt trip breaker because it is required. Commercial kitchens use this device in compliance with ANSI/ASME CSD-1, while elevators and escalators comply with ASME A17.1. These codes refer to the controls and safety standards provided by ASME’s.

This question is a topic of discussion among Reddit members as well. Join the conversation here:

Found at a dominos by u/Guilty_Sympathy_496 in electricians

Mostly, installing a shunt trip relay requires that the breaker and the shunt be from the same maker. Also, not all breaker models are compatible with this accessory.

Once you’re sure that your system can take a shunt trip accessory, installation is pretty much straightforward. You can watch this video by Aaron CBIONE for some tutorials.

Note: Every circuit breaker comes with different instructions. It would depend on the brand and model of the breaker .

However, the critical part of every installation is that you need to connect the shunt to your sensor. You may need a shunt trip breaker diagram as a reference to ensure correct installation.

Also, check the brand and model of your breaker before proceeding with the installation. Some makers only allow a factory install of the shunt trip and other accessories. DIY installation may void the warranty of your breakers. It’s best to read up on the manual or consult an electrical professional before making any changes.

What is a shunt trip breaker? The shunt trip is an optional accessory for a circuit breaker for added protection to your system. It is designed to connect to a secondary sensor. It will trip the breaker automatically if the sensor is triggered. It can also be activated via a remote switch that you can install.

Do you think that a circuit breaker is enough to protect your investment? Or do you want an additional layer of protection for your electrical circuit? If you’re not decided yet, reach out to me in the comments section below, and I will be happy to help you.

I am Andrew Wright. I established this blog after eight years of experience designing, installing, and maintaining electrical power systems. I love my job, and I have always wanted to offer others the necessary help so they can take care of their houses.

Edukatronik.com

What is a Shunt Trip Breaker?

Home / Tutorials / Electrical Circuit Breakers / Types of Circuit Breakers / Shunt Trip Breaker

A shunt trip breaker, also known as a shunt trip circuit breaker, is a type of electrical circuit breaker that includes a shunt trip coil or solenoid. This coil allows the breaker to be remotely tripped or opened by sending an electrical signal to the coil.

When the coil receives current, it creates a magnetic field that forces the circuit breaker to open, disconnecting the electrical circuit. In this article, we will see in detail its operation and its uses.

How does shunt trip work?

• Normal circuit operation: when the shunt trip circuit breaker is on, and therefore the circuit is operating, current flows through the circuit normally. This means that there are no electrical faults and the circuit is working properly.
• Shunt trip disconnection: to trip a shunt trip circuit breaker, you must trip an external signal, this can be done by several tripping mechanisms: manual push button, remote control, fire alarm system or a programmable logic controller.
• Energization of the shunt trip coil: when the external signal is sent, either by any of the mechanisms explained above, the shunt trip coil is energized with the appropriate voltage. This causes the coil to generate a magnetic field.
• Magnetic field effect: the magnetic field generated by the shunt trip coil exerts a force on a mechanism within the circuit breaker. This force is designed to overcome the mechanism that holds the circuit breaker contacts in the closed position.
• Tripping the circuit breaker: as the magnetic field overcomes the mechanical resistance, it releases the mechanism holding the circuit breaker’s contacts closed. This action causes the circuit breaker to trip or open the electrical circuit, disconnecting power.

Attention: it is important to note that shunt trip breakers not only provide greater flexibility in tripping the circuit breaker, but also offer an additional degree of surge protection. They also offer an additional degree of surge protection.

Wiring a shunt trip circuit breaker

Wiring a shunt trip breaker involves connecting the shunt trip coil, which is responsible for tripping the breaker when activated, to an external control circuit or signal source.

The specific wiring may vary depending on the manufacturer and model of the shunt trip breaker, so it’s essential to refer to the manufacturer’s documentation and follow local electrical codes and regulations. Here are the general steps to wire a shunt trip breaker:

• Take safety precautions: to begin with, you should turn off the main circuit breaker and make sure that no current is flowing through the circuit. It is also advisable to use safety equipment that can protect you from accidents when handling the circuit.
• Locate the shunt trip terminals: almost all models have two terminals for the shunt trip coil (usually labeled “ST” or “Shunt Trip”) and the terminals to be connected to the circuit. See the schematic below for more information.
• Select a control voltage: determine the control voltage for the shunt trip coil. The control voltage is the voltage that activates the shunt trip coil, causing the circuit breaker to trip or open. This voltage should match the specifications of the shunt trip coil.
• Connect the shunt trip coil: the purpose of this step is to connect the shunt trip coil in series with the control voltage source and the ST terminals, in the next step we will go into more detail. You can follow the electrical diagram of the shunt trip coil below.
• Control signal source: the control signal source can be a manual switch, relay, fire alarm system, or any other device that can provide the necessary control voltage. Connect the control signal source to the control voltage terminals you used in the previous step.
• Finish the circuit wiring: next, connect the circuit breaker to the circuit it is intended to protect. And make sure that all wiring is properly secured and insulated to avoid short circuits or electrical hazards.
• Test the shunt trip circuit breaker: finally, it is highly recommended to do some functional tests to verify that the wiring has been done correctly.

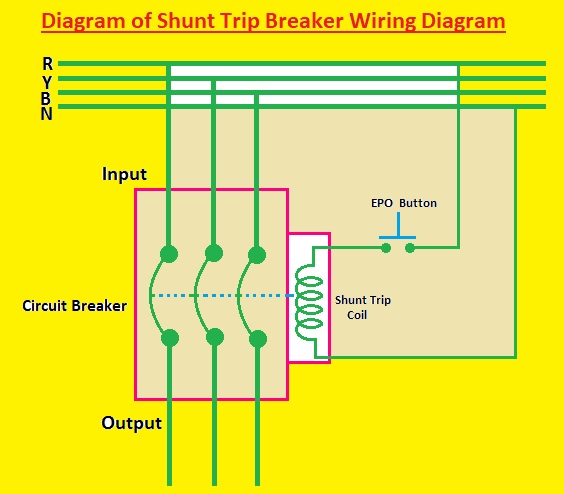

Shunt trip breaker wiring diagram

If you don’t understand the electrical diagram and need help wiring the breaker, do not hesitate to ask us in the comments.

Where is shunt trip required?

Shunt trip breakers are commonly used in applications where it is necessary to quickly and remotely disconnect power to a circuit or device for safety or operational reasons.

They are often found in industrial settings, commercial buildings, and other facilities where it is important to have the ability to shut off power from a central location in the event of an emergency or for routine maintenance.

In the following list, we explain some of the most common shunt trip circuit breaker applications:

• Fire safety systems: shunt trip breakers are frequently used in conjunction with fire alarm systems. When a fire alarm is triggered, it sends a signal to the shunt trip coil of the breaker, causing it to open and de-energize circuits to prevent the spread of fire or provide safe egress.
• Elevators: it is very common to use shunt trip circuit breakers in elevator control systems. Since in case of emergency or maintenance, you can disconnect the elevator with the shunt trip remotely.
• Critical equipment: in the case of critical equipment or machinery, it is also very common to find this type of circuit breakers. Because they can be triggered remotely to prevent failures.
• Emergency power off (EPO) systems: EPO systems in data centers and other critical facilities can use shunt trip breakers to rapidly disconnect power in emergency situations.
• Maintenance and service: shunt trip breakers make it easier and safer for maintenance personnel to disconnect power from a central location. Reducing the need to access electrical panels in potentially hazardous conditions.

What is the difference between a shunt trip and a regular breaker?

Throughout the article, we have already mentioned the differences between an electrical shunt trip and a normal circuit breaker. But, as a summary, we are going to clarify it in this section.

The main difference is that a shunt trip breaker includes a shunt trip coil or solenoid, which allows it to be remotely tripped or opened by sending an electrical signal to the coil. Whereas a standard circuit breaker does not have this capability.

In addition, a regular breaker is typically used for basic circuit protection and is commonly found in residential, commercial, and industrial electrical systems. In contrast, a shunt trip breaker is specifically designed for applications that demand the capability to rapidly disconnect power from a central location.

This makes shunt trip breakers more expensive components than standard circuit breakers.

FAQ about shunt trip breakers

By way of conclusion, let’s answer the most common questions related to shunt trip circuit breakers. Without further ado, here we go.

Are shunt trips normally open or closed?

Shunt trips in circuit breakers are typically designed to be in the normally closed position. This means that when the circuit breaker is in its normal, energized state (not tripped), the shunt trip coil is de-energized, and the shunt trip mechanism is in the closed position.

When an external signal is sent to trigger the shunt trip, the coil is energized, creating a magnetic field that opens the shunt trip mechanism and causes the circuit breaker to trip or open the electrical circuit. Once the circuit breaker has tripped, it will remain in the open position until it is manually reset.

Does a shunt trip breaker need a neutral?

Whether a shunt trip breaker requires a neutral connection depends on the specific design and requirements of the breaker. Shunt trip breakers can be designed to work with or without a neutral connection, and this varies from manufacturer to manufacturer.

It’s important to consult the manufacturer’s documentation and specifications for the particular shunt trip breaker you are working with to determine whether it requires a neutral connection.

What is the voltage for shunt trip?

The voltage required for a shunt trip mechanism in a circuit breaker depends on the specific design and model of the breaker. Shunt trip breakers can be designed to operate with various control voltage ratings to suit different applications and electrical systems.

Common control voltage ratings for shunt trip breakers include:

• 24 Volts AC: often used in commercial and industrial applications. This voltage level is commonly available and suitable for many control systems.
• 120 Volts AC: may be used in a wide range of applications and are readily available.
• 240 Volts AC: it is also commonly found in industrial settings.

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Save my name, email, and website in this browser for the next time I comment.

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

• San Jose, CA (408) 998-2980
• Roseville, CA (916) 771-5593
• Modesto, CA (209) 491-5250
• Fort Worth, TX (817) 293-2700
• Request a Quote

What Is A Shunt Trip?

A shunt trip is a circuit breaker protector that can remotely trip a breaker.

Our everyday electrical systems are complex networks of breakers, wiring, receptacles, and more. And each component is essential to bring the electricity where we need it and keep production equipment running, like HVAC systems and lighting.

Each component has its place, including shunt trip circuit breakers, which are optional but can be an important component in the system. This particular piece is an accessory to the main breaker, adding extra protection to the system. This article explains shunt trips, how they work, and why they’re important.

What Are Shunt Trip Circuit Breakers?

Shunt trips are a type of circuit breaker protection that serves as an accessory for your circuit breaker . These breakers enable users to trip the breaker remotely, shutting down power to a particular circuit.

While it would be illogical to randomly cut power to a circuit in your building, having the ability to remotely regulate this can be helpful. For example, cutting the power to the circuit by remotely tripping the breaker in a power surge or other emergency could help prevent injury and equipment damage.

How Do They Work?

Shunt trip breakers offer an added degree of protection against power surges, and although they serve a similar purpose to regular circuit breakers, they work somewhat differently. A circuit breaker will automatically trip when it finds fault, cutting power to the circuit to avoid issues like overheated wiring.

The breaker trips off when the currents surge too high, causing the electromagnet underneath the main breaker to charge, which triggers the switch and cuts power to the system. On the other hand, a shunt trip breaker offers extra protection.

It offers an alternative method to charge the electromagnet, which triggers the switch. This enables you to remotely or automatically trip the breaker and cut power in an emergency.

There are a few different types of shunt trip breakers, automatic and manual, each of which features a slightly different setup. However, despite the variation, they work similarly. For example, some shunt trips tether to an external power source. So, when the power surge reaches this source, it sends a signal to the main breaker, causing the power to shut off automatically.

Other shunt trips connect to a remote switch on the building’s exterior. To cut power via the shunt trip you simply press the button on the switch to send the electrical surge through the shunt trip wiring and cut the power.

Where Are Shunt Trip Breakers Used?

Although shunt trip breakers are an optional accessory for buildings, they offer an added layer of security, so many individuals choose to install them. Generally, the local building code views these as an optional addition, so you technically don’t need to incorporate them into your project.

However, it doesn’t hurt to incorporate them, especially if the building contains expensive machinery or equipment like in an industrial setting. In addition, adding a shunt trip can easily cut power to the building if necessary in an emergency.

Aside from large warehouses and facilities housing high-end industrial machinery, many businesses feature shunt trip breakers as a safety precaution.

Why Are Shunt Trip Breakers Important?

Despite the optional nature of shunt trip breakers, they can be an essential safety device in an electrical system. As a result, many electricians incorporate these breakers as an added layer of security because they can prevent injury and damage during power surges or other emergencies.

These breakers are helpful on multiple fronts, but one of the most common ways people use them is during a fire. By turning off the power when a fire breaks out, electrical hazards are no longer a significant risk.

Others connect the shunt trip to smoke alarms in their homes, so the power automatically turns off when the detectors trigger an alarm. Of course, this might not be sensible in some cases, as sometimes the smoke alarm goes off due to steam from the shower or smoke from the kitchen.

However, continuing with the same example, connecting the shunt trip breaker to a smoke alarm is wise, especially when a sprinkler system is involved. The device will cut power to your building as soon as the smoke detectors trigger the sprinkler system, which helps reduce the risk of electrocution.

The Bottom Line

A shunt trip is optional to your building’s electrical system and is designed for additional protection and safety. The system helps mitigate damage to electrical equipment due to power surges, lessen the chances of personal injury, and avoid electrocution hazards if a fire breaks out. So, although shunt trip breakers aren’t required, incorporating them is not a bad idea!

If you need help installing a shunt trip, Bay Power is here to help. Contact us today for all of your electrical component needs.

Related Posts

Motor & pump control panel—fundamentals & faqs.

• Zenith T-Series Automatic Transfer Switches

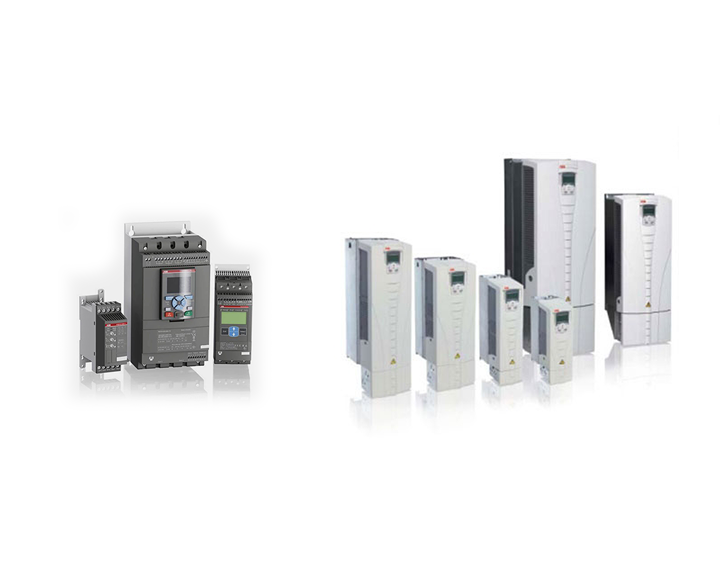

• Soft Starters vs. Drives

Browse by Category

• Guides and Information
• Circuit Breakers
• Bay Power News

Recent posts

• Invertek Drives - VFD Solutions

• Free PCB Prototyping
• Integrated Circuits
• Memory Cards, Modules
• Discrete Semiconductor Products
• Free PCB Assembly
• Application Specific Microcontrollers
• Zynq-7000 SoC
• FPGA Spartan-7
• Artix-7 FPGA
• Free Gerber Viewer
• Special offer: $2 for 1-8 layer PCBs

What Is A Shunt Trip Breaker & How Does It Work? 2023 Detailed Guide

Hello readers welcome to the new post. In this post, we will learn What Is A Shunt Trip Breaker & How Does It Work. 2023 Detailed Guide. There is electrical system safety is the main parameter for the power system/ The main element hat ensures the safety of electrical installation is the shunt trip breaker.  In this post, we will discuss the all details shunt trip breaker and other parameters. So let’s get started What is a shunt trip

Table of Contents

What is a Shunt Trip Breaker?

The shunt trip breaker is the replacement of circuit breakers which helps to trip breaker from some distance automatically when the urge comes and prevent any harmful effect or damage of any fault. There are two main types of shunt trip breakers first one is automatic and the second is manual

• Automatic shunt trip breakers come with a sensor that helps the detection of faults such as overvoltage and overcurrent and its signal is given to the shunt trip breaker that trips the circuit
• Manual shunt trip breakers are connected with a remote switch for tripping the breaker at some distance. it is beneficial to shut off the power supply at a distance such as a fire alarm and security system

Shunt trip breakers work with the use of small currents from shunt trip terminals. The field created by the current trips the breaker.

 How Does a Shunt Trip Breaker Work?

A shunt trip breaker is tripped from some distance with the use of tripped to its shunt coil. it automatically trips the breaker in case of any fault like an overload. The shunt breaker works with the use of a solenoid to mechanically trip the breaker.  it has a coil that energizes and creates a magnetic field. Fields make attraction with plungers and trip breakers that open the contacts and restrict the current flow.

Shunt trip breakers are preferred for distance breaker trips. such as those used in industrial locations where high chances of fire. They also used in buildings to off the power supply at distant locations

 Components of  Shunt Trip Breaker

Read more  Top Reasons Why Electric Outlet Stopped Working Breaker Not Tripped?

A shunt trip breaker comes with differnt components:

 Main Contacts

This part of the shunt trip breaker is employed for carrying and interruption of current flow. Their main function s to control  high current  and make reliable connections

 Shunt Coil

The shunt coil is an electromagnet that gets an electrical signal for breaker tripping. It produces a magentic field when gets energized releases the latch and starts the tripping process

 Trip Mechanism

it helps to disconnect the mechanical circuit when the breaker trips. it has a latch that helps contact during normal working but releases due to trip signal.

Control Wiring

The control wiring triggers the device remotely or control panels.  It works for remote activation of the shunt trip to provide the protection layers

 Installation and Wiring of a Shunt Trip Breaker

To install a shunt trip breaker, follow these instructions.

• First of all, off the power supply
• Select the accurate location for the shunt trip breaker in the panel
• Connect the breaker  with panel bus bars and make its connections accurately
• Connect control wiring from the shunt trip breaker with the remote triggering device
• Make  grounding and electric connection of different points
• Finally, ON the main power supply and test the shunt trip breaker to have the accurate function

 Applications of Shunt Trip Breakers

• Commercial buildings
• Hospitals and healthcare facilities
• Data centers
• Industrial facilities
• Laboratories
• Hotels and resorts

Benefits and Advantages of Shunt Trip Breakers

• it has protection for remote sources to disconnect power during any fault.
• its high-speed response time helps to avoid electrical hazard
• it can be easily integrated with older electrical systems.
• it also has compatibility with different devices used in circuitry like ground fault circuit interrupters and arc fault circuit interrupters

Maintenance and Troubleshooting of Shunt Trip Breakers

• Regular inspection of the breaker helps to find the symbols of damage or wear.
• Perform differnt electrical tests to check the it is working accurately or not
• Make sure there are no dust particles on the breaker so clean it regularly
• Make it properly lubricated
• After finding the fautls solve it

 Comparison with Other Circuit Protection Devices

Shunt trip breakers vs. standard circuit breakers, shunt trip breakers vs. ground fault circuit interrupters (gfcis), shunt trip breakers vs. arc fault circuit interrupters (afcis), tips for choosing the right shunt trip breaker.

• Choose according to the voltage rating of your circuit
• it has compatibility with  electrical panels and other protection devices used in circuitry

Shunt trip breaker wiring

Its wiring is very simple and easy. The shunt coil has two terminals one used for voltage supply and the other for neutral. The supply is about 120 volts AC and the neutral is connected to the neutral point of the breaker

The shunt coil is attached in a series combination with the push button. When we press the button it closes teh circuit to the shunt coil that trips the breaker. It is good to check that the shunt coil is rated for a similar voltage to the breaker.  If the shunt coil does not have the same rating it can be damaged

Diagram of Shunt Trip Breaker Wiring Diagram

Why Are Shunt Trip Breakers Important?

•  safety: Shunt trip breakers are helpful for minimizing the effect of electric fires and damage with the use of automatic trip of the breaker. it is best for avoiding the risk of fire or damaging
• Remote control: These breakers trip circuits from distant points, so not accessible points can be controlled through this device
• Flexibility: it is used in commercial, industrial,  and residential settings.

Where Do People Most Often Use Shunt Trip Breakers? :

• Industries: in industries, there is a high chance of fire so it is used there. They can be used for a tripping breaker if there are overloading conditions
• Commercial buildings: it is used in buildings to power off at some points where faults exist. Like, they used to off the power to a fire alarm or data center
• Residential applications: it is also used in homes  to trip breakers if there is a power surge or fire alarm triggered

Read more  How Many Outlets on a 15 Amp Circuit Breaker?

How Many Outlets on a 15 Amp Circuit Breaker?

60 Amp Wire Size – Which AWG is Best for 60 Amp Breaker

How does a shunt trip breaker work?

A shunt trip breaker controlled by a small current from some distance. It is best for uses where it has the ability to off  power to circuitry from distant points, like fire alarm systems

How is a shunt trip breaker wiring?

The shunt trip terminals are connected to the top and lower parts of the circuitry breaker. Small-size wire is used for wiring the shunt trip breaker between the shunt trip points and the remote source of supply. The power source can be battery relays

What is the purpose of a shunt with a relay?

The shut relay provided the remote tripping for the breaker. The shunt low resistance conductor is connected between the circuit breaker and relay. When current passes through the shunt, it makes a magentic field that functions as the relay. The relay close contacts that trip the breaker.

What is shunt trip and under voltage?

Shunt trip and under voltage are differnt terms used for the differnt tripping methods of the breaker.  Shunt trip use a shunt to have remote tripping. Under voltage is tripping off the circuit breaker when voltage loses less than a certain value

Where is shunt trip used?

• Fire alarm systems
•  Security system
• Power distribution
• Industrial control systems

What is the difference between shunt and resistance?

The main difference between a  resistor and a shunt is the temperature coefficient of thermal EMF . For resistors thermal EMF is not considered but for shunt resistors considered, based on temperature values two different conductive materials generate variable voltage

Is the shunt resistor AC or DC?

Shunt resistors can be used for both AC and DC circuits. Though the value of the shunt resistor will be different from ac and DC circuits

Why is it called a shunt resistor?

The term shunt originated from the Latin word “scindere”, which means to split.  A shunt resistor is used for spiting current in circuitry.

Why is low resistance called shunt?

When the resistor is connected with another resistor of low values then the equivalent resistance is lower than a single resistor that shunts the resistor.

What is another name for a shunt resistor?

it also called a shunt resistor is a current-dividing resistor.

What is unit of shunt resistance?

The unit of shunt resistance is ohm (Ω).

What is shunt resistance formula?

The shunt resistance formula is:

• Rs is the shunt resistance
• V is the voltage of the shunt resistor
• I is the current passing through the shunt resistor

Share this:

Wholesale PCBs SMT Stencil & PCBA Service Provider

Special offer:$2 for 1-8 layer PCBs

Sign Up & Get 54$ Coupon

Author:  mustafa

Related posts.

Comparing Approaches to Remote Substation Monitoring – Why a Touchless Approach Is Better October 28, 2023

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Save my name, email, and website in this browser for the next time I comment.

Post comment
